Common Asymmetric Algorithms (Part 2): ECC

• What is ECC
• How Does ECC Work
  • Scalar Multiplication
    • Step 1: Derive 2G
    • Step 2: Derive 3G
  • A Complete Example
    • Step 1: Agree on a Curve and Point
    • Step 2: Choose Private Keys
    • Step 3: Compute Public Keys
    • Step 4: Derive a Shared Secret
    • Step 5: Derive a Symmetric Key
• Why Is ECC Popular
  • Strong Security
  • High Performance
• Conclusion

What is ECC

Elliptic Curve Cryptography (ECC) is an asymmetric cryptographic algorithm that is gaining popularity due to its strong security and smaller key sizes compared to other common algorithms like RSA.

It is especially suitable for key exchange and is often combined with symmetric algorithms like Advanced Encryption Standard (AES) to secure information transmission. ECC is widely used in technologies and services like TLS and Signal.

How Does ECC Work

In essence, ECC works by deriving a third point from two known points on a curve. The key components of the algorithm are:

• An elliptic curve defined by a cubic equation in this form: y² = x³ + ax + b. The curve is symmetric across the x-axis.
• A random starting point, G, on the curve, which is agreed upon by both parties.

The most difficult part to grasp is how a third point is derived. This is achieved through what is called scalar multiplication.

Scalar Multiplication

Let's say there is a point H on an elliptic curve, and H = G + G + G + ..., then H is a scalar multiple of G. Mathmatically, we express H as:

H = a・G

Where a is an integer scalar.

Scalar multiplication is entirely different from traditional arithmetic addition. If G = (0, 1), we cannot compute 2G as:

❌2G = (0+0, 1+1) = (0, 2)

Instead, we use a special geometric method of point addition to derive the new point. Here is an example using the curve y² = x³ - x + 1 and the starting point G = (0, 1) to compute 3G.

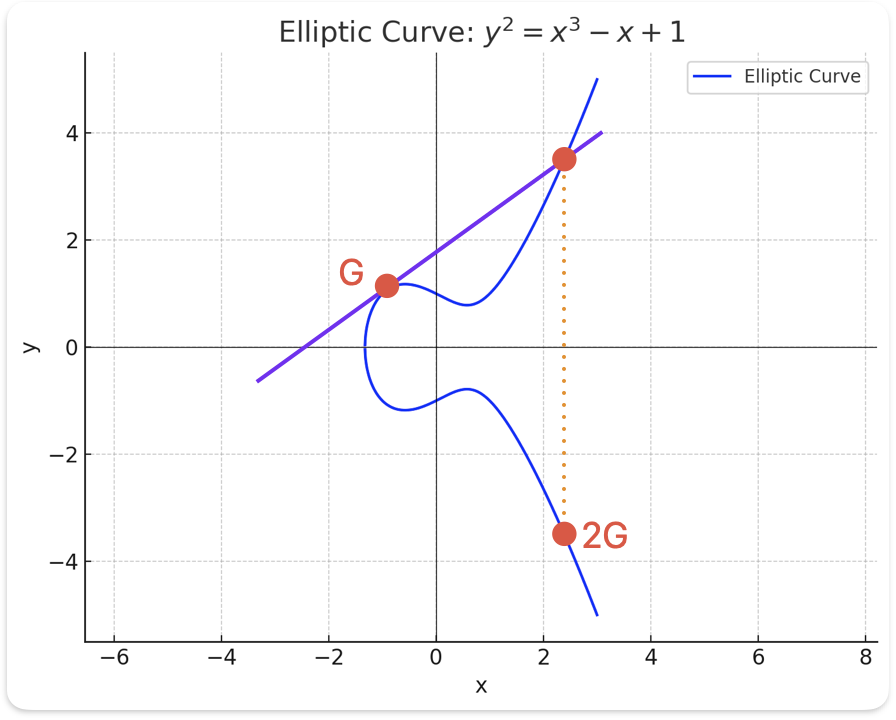

Step 1: Derive 2G

Normally, to add two points, we draw a line between them, find the third point of intersection with the curve, and reflect it across the x-axis.

When calculating 2G = G + G, we draw the tangent line at G (since the two points are the same), find its intersection with the curve, and reflect that point to get 2G.

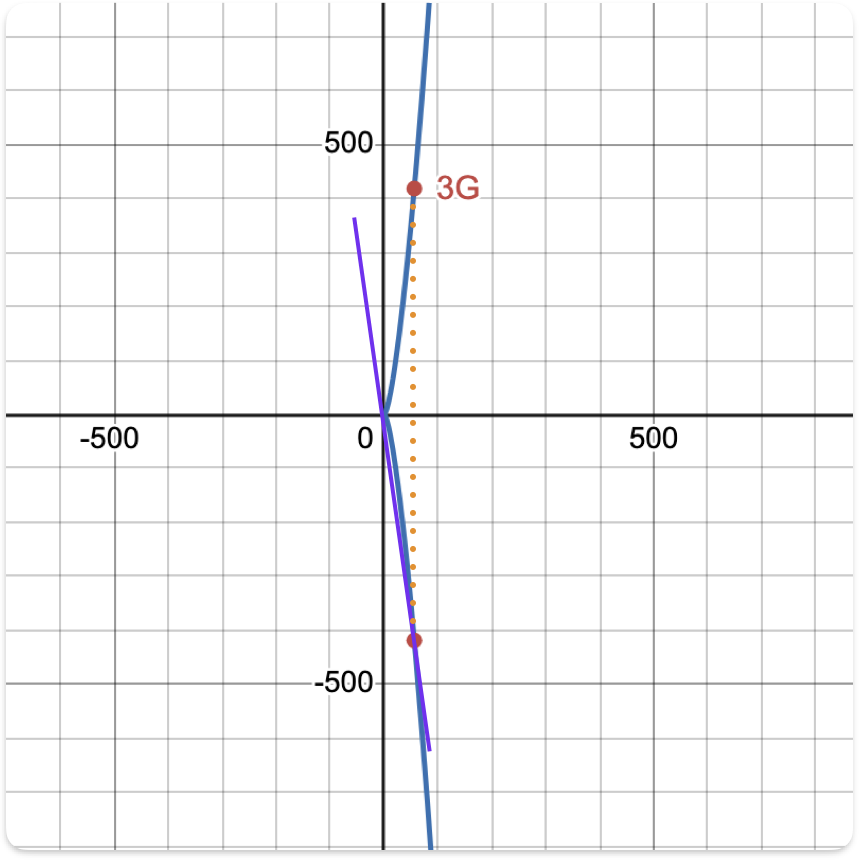

Step 2: Derive 3G

Now, draw a line through G and 2G, find the third point of intersection with the curve, and reflect it across the x-axis to obtain 3G.

A Complete Example

Now that we understand how scalar multiplication works, we can walk through how ECC is used to generate keys and create a shared secret for secure message transmission.

Step 1: Agree on a Curve and Point

Suppose Alice and Bob want to exchange keys using ECC. First, they agree on the elliptic curve and a base point on the curve, G.

Step 2: Choose Private Keys

Alice and Bob each select a random integer, a and b, as their private keys.

Step 3: Compute Public Keys

They then compute their public keys, A and B, using scalar multiplication:

A = a・G
B = b・G

Step 4: Derive a Shared Secret

Each party uses their private key and the other’s public key to compute the shared secret:

S = a・B = b・A = a・b・G

This works because of the associative property of ECC point multiplication.

Step 5: Derive a Symmetric Key

Since ECC is typically used for key exchange, not for encrypting actual messages, the shared point S is passed through a Key Derivation Function (KDF)—such as SHA-256—to derive a symmetric key:

Key = KDF(Sx)

Where S_x is the x-coordinate of the shared point.

Alice and Bob now use the derived symmetric key with a fast symmetric algorithm like AES to encrypt and decrypt their actual messages.

Why Is ECC Popular

Strong Security

ECC’s security relies on a difficult mathematical problem called the Elliptic Curve Discrete Logarithm Problem (ECDLP), which asks:

Given a point G and another point a・G, can you determine a?

The answer is: not feasibly. While scalar multiplication is easy, reversing it to recover the private key is computationally infeasible, even with powerful hardware.

High Performance

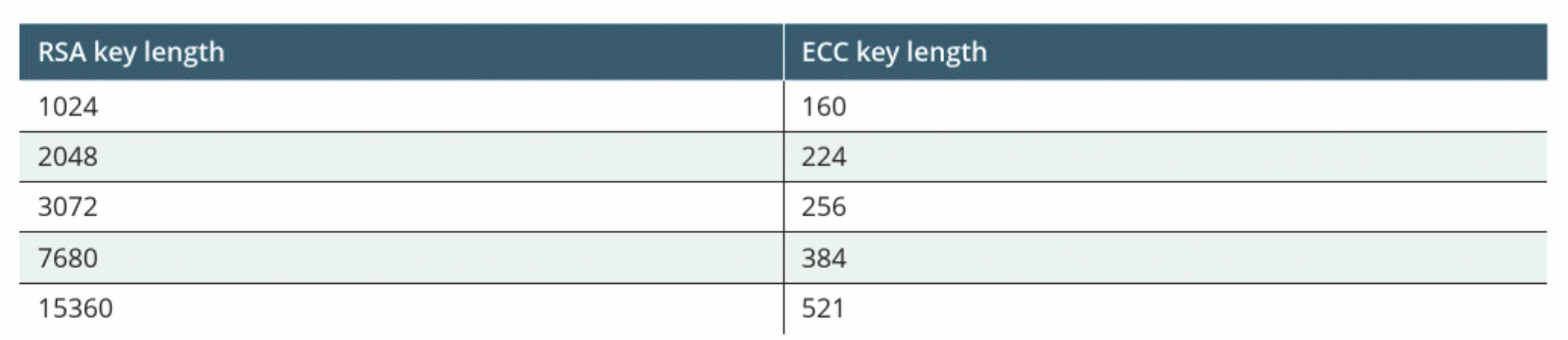

ECC can achieve the same level of security as RSA but with much smaller key sizes.

This makes ECC faster and less resource-intensive, which is especially important for mobile devices and low-power systems.

Conclusion

Elliptic Curve Cryptography is one of the most widely used asymmetric encryption methods today due to its strong security and high efficiency. Major operating systems, web browsers, and secure messaging apps rely on ECC—and it is especially valuable for resource-constrained devices like smartphones, wearables, and IoT sensors.
